High Directivity Couplers – CP0603


Features & Benefits
  • Inherent Low Profile
  • Self Alignment during Reflow
  • Excellent Solderability
  • Low Parasitics
  • Better Heat Dissipation
  • Operating/Storage Temp -40°C to +85°C
  • Power Rating 3W RF Cont
Typical Applications
  • Mobile Communications
  • Satellite TV Receivers
  • GPS
  • Vehicle Location Systems
  • Wireless LANs

The CP0603 ITF LGA Coupler is based on thin-film multilayer technology. The technology provides a miniature part with excellent high frequency performance and rugged construction for reliable automatic assembly.

The ITF Coupler is offered in a variety of frequency bands compatible with various types of high frequency wireless systems.

Datasheet / Catalogs
Datasheet / Catalogs – Click to Download

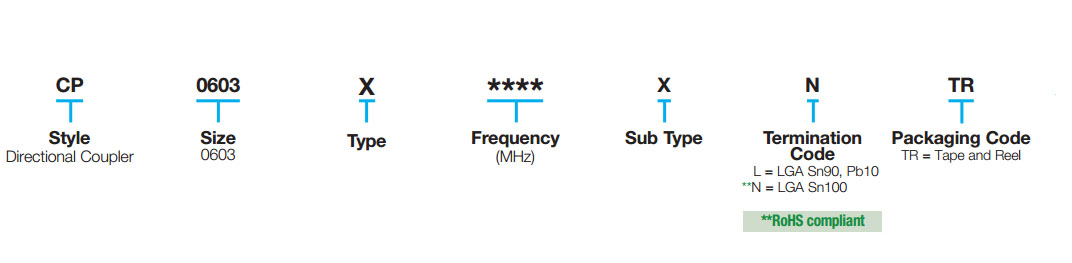

Part Number Information
Part Number Information

CP0603 High Directivity
» Click to View

Design Tools
S2P Files – Click to Download
Libraries – Click to Download

AVX also works with several of the most popular software vendors to ensure our products are up to date in their software, and are constantly working with new vendors to ensure that they have the most up-to-date AVX libraries. These libraries are available below and can be added to your software.

Software – Click to Download
Modelithics
Modelithics
KYOCERA AVX and Modelithics have partnered to offer FREE 90-Day trials of highly accurate, scalable advanced simulation models for various KYOCERA AVX parts including this part as well as Attenuators, Capacitors, Couplers, Inductors, Diplexers, Resistors.
Click for a Free 90-Day Trial!
Use Promo Code: AVXWP
