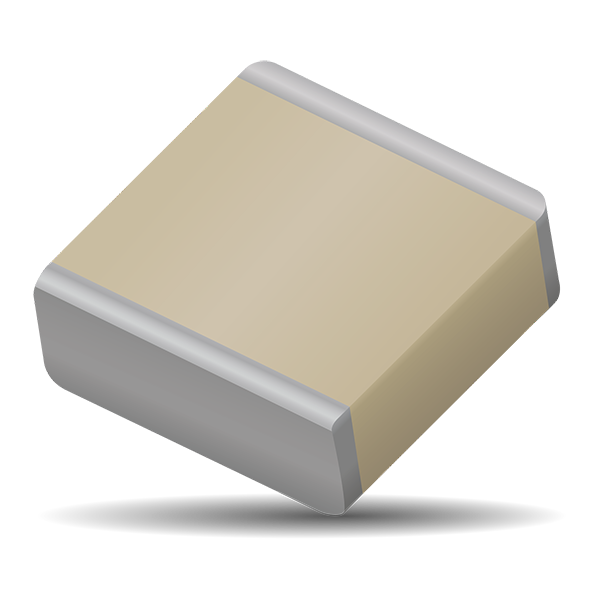

100B Series Porcelain Multilayer Capacitors (MLCs)


Features & Benefits
  • Case B Size (.110″ x .110″)
  • Capacitance Range 0.1 pF to 1000 pF
  • High Q
  • Ultra-Stable Performance
  • Low ESR/ESL
  • High Self-Resonance
  • Low Noise
  • Extended Operating Temperatures up to 175°C
  • Available with Encapsulation Option (Leaded Styles Only)
  • Established Reliability (QPL)

KYOCERA AVX, the industry leader, offers new improved ESR/ESL performance for the 100B Series RF/Microwave Capacitors. This Series is now available with extended operating temperatures up to 175°C. High Density porcelain construction provides a rugged, hermetic package.

Datasheet / Catalogs
Datasheet / Catalogs – Click to Download
Applications
Functional Applications
  • Bypass
  • Coupling
  • Tuning
  • Feedback
  • Impedance Matching
  • DC Blocking
Circuit Applications
  • UHF/Microwave/RF/IF Amplifiers
  • Mixers
  • Oscillators
  • Filter Networks
  • Timing Circuits
  • Delay Lines
  • MRI Imaging Coils
  • Medical Electronics

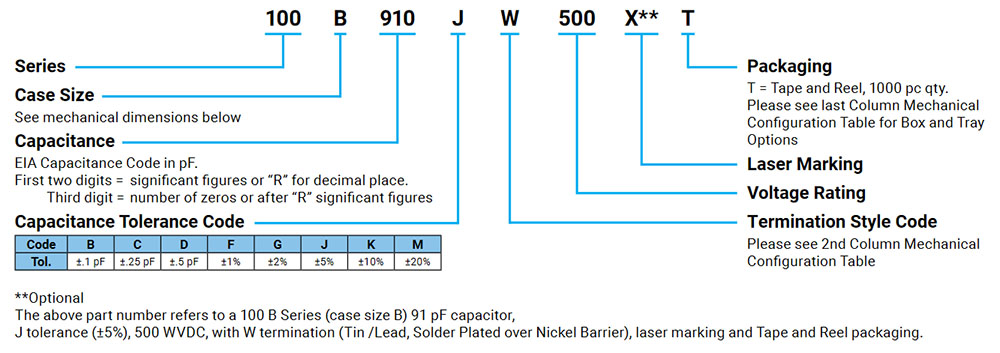

Part Number Information
Part Number Information

100B Series
» Click to View
