Surface Mount Chip Terminations – CZ Series


Surface Mount Chip Terminations
Features & Benefits
  • Nominal Impedance: 50 Ω
  • Resistive Tolerance: ±2% standard
  • Temperature Coefficient: ±150 ppm/ºC
Typical Applications
  • High Power RF Amplifier
  • Instrumentation

The CZ Series of high power surface mount chip terminations offer a nominal impedance of 50Ω, with the capability of resistances between 10Ω and 200Ω, resistive tolerance of ±2%, power handling capability up to 40W and operating temperature range from -55ºC to +150ºC. All terminations are manufactured in ISO 9001 facilities.

Datasheet / Catalog
Datasheet / Catalog – Click to Download
Part Number Information

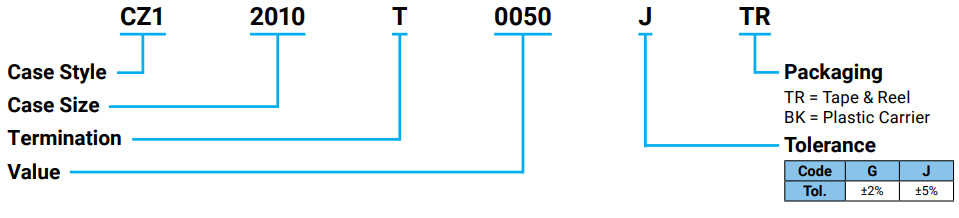

Part Number Information

Surface Mount Chip Terminations - CZ Series
» Click to View
