J-CAP Series - SSD | KYOCERA AVX

Features & Benefits

Highest Energy per Volume
Fast DCL Drop with Voltage Applied After
Benign Failure Mode Under Recommended Use Conditions
Low ESR
Undertab Terminations Layout:
– High Volumetric Efficiency
– Low Profile Case Sizes
– High Capacitance in Smaller Dimensions
– Close Positioning of Several Parts for Efficient High Density PCB Layout
3x reflow cycles according to J-STD-020
100% Surge Current Tested

Typical Applications

Power Backup for SSDs (MLC, SLC, EFD, PCIe)
Battery-Powered Portable Equipment
Industrial Alarms
Smart Power Meters
Mobile Devices

Highest Joule/cc J-CAP™ Conductive Polymer cathode solid electrolytic chip capacitors are designed to provide high energy, small, low profile solutions for demanding solid-state drive (SSD) applications. Exhibiting low ESR and the highest energy per volume (Joules/cc) of any comparable SMT capacitor currently available on the market. Voltage offering from 6.3V up to 50V. Focused to serve long time operational life and robustness via optimized internal design, material and 100% temp/voltage aging and 100% low resistance surge testing. Designed with undertab terminations for maximum volumetric efficiency and high PCB assembly density. The conductive polymer electrode exhibits a benign failure mode under recommended use conditions. Lead-free, halogen free compound, RoHS compliant components.

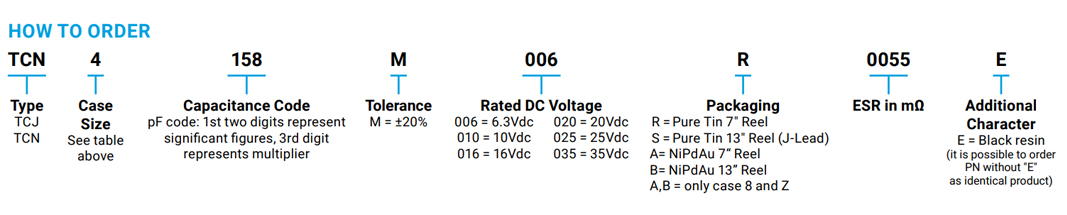

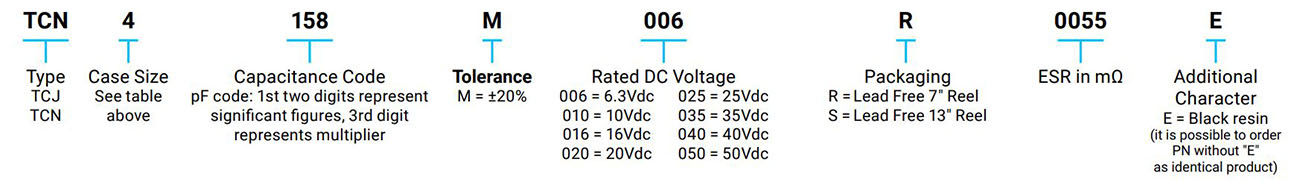

Datasheet / Catalog
