Single IDC Contact 18-24 AWG: 9176-500

Features & Benefits

IDC contact is supplied in T&R pockets for standard SMT placement
IDC contact provides a gas-tight connection to the PCB for long term reliability
Optional termination cap provides additional strain relief for severe environments
Tested to automotive levels on shock, vibration and temperature cycling for reliability
Reduced total applied cost versus solder or crimp processes
Individual contacts can be located anywhere on the PCB based on specific application

Typical Applications

Connecting discrete wire components directly to the PCB
Bringing power and signals onto a PCB
Daisy chaining PCB’s together to create a continuous string of boards

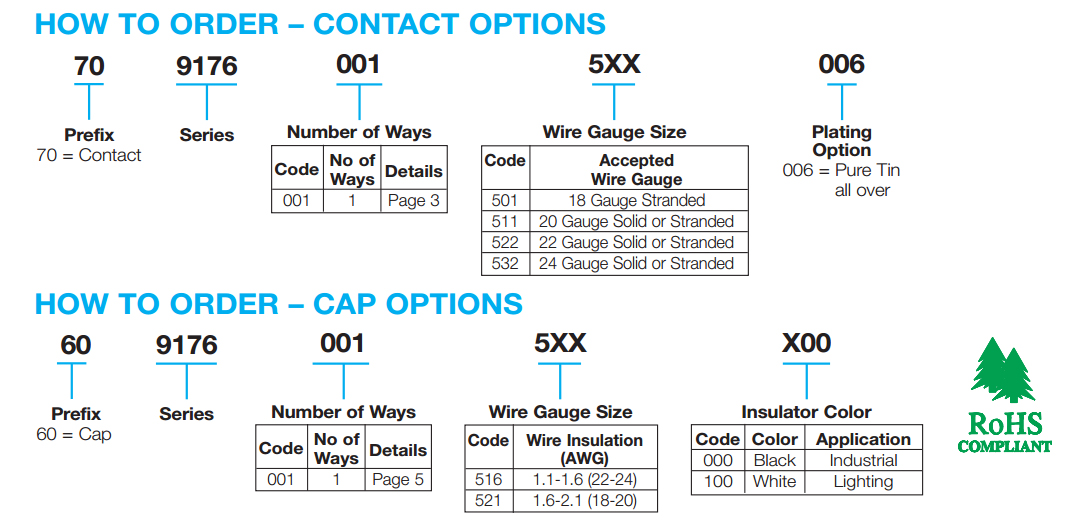

The single 9176 series contact and cap accepts 18 AWG to 24 AWG wires with an insulation diameter ranging from 1.1mm to 2.1mm. These dual beam contacts support a 10 amp current rating with a large SMT solder base to provide maximum stability on the PCB. The optional locking strain relief cap acts as the termination tool for severe vibration applications.
