506WLS Series | Ultra-Broadband SMT Inductor

Features

Operating Frequency:
400 KHz (-3 dB roll-off frequency) through 40+ GHz, typ.
Operating Temperature Range:
-55°C to +125°C
Lead-Free, RoHS Compliant Terminations

Advantages

Ultra-Broadband Performance
Ultra-Low Insertion Loss
Flat Frequency Response
Excellent Return Loss Through 40 GHz
Unit-to-Unit Performance Repeatability
Rugged Powdered Iron Core

KYOCERA AVX, the industry leader, is introducing the new 506WLS Series High Frequency Ultra-Broadband Inductor (UBL). This unique component provides low insertion loss and an excellent match over multiple octaves of frequency spectrum. The 506WLS is ideal for ultra-broadband DC decoupling networks and bias tee applications in optical communications systems and equipment using highspeed digital logic.

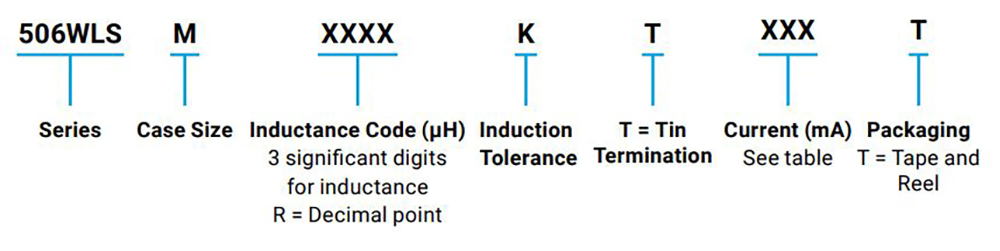

Part Number	Inductance (µH)	Operating Frequency Range*	Insertion Loss** typ.	Return Loss** typ.	DC Resistance Ω typ.	DC Current (DC max.)***
506WLSM0R47KT815T	0.47	9.5 MHz to 40+ GHz	< 0.5 dB	> 20 dB	0.19	815 mA
506WLSM0R70KT619T	0.7	5.6 MHz to 40+ GHz	< 0.5 dB	> 20 dB	0.32	619 mA
506WLSM1R10KT438T	1.1	3.3 MHz to 40+ GHz	< 0.6 dB	> 22 dB	0.64	438 mA
506WLSM2R00KT277T	2.0	2.1 MHz to 40+ GHz	< 0.4 dB	> 20 dB	1.60	277 mA
506WLSM3R80KT182T	3.8	1.1 MHz to 40+ GHz	< 0.4 dB	> 25 dB	3.70	182 mA
506WLSN1R47KT694T	1.47	2.8 MHz to 40+ GHz	< 0.4 dB	> 17 dB	0.33	694 mA
506WLSN2R00KT494T	2.0	1.6 MHz to 40+ GHz	< 0.5 dB	> 17 dB	0.65	494 mA
506WLSN3R30KT350T	3.3	1.3 MHz to 40+ GHz	< 0.5 dB	> 17 dB	1.29	350 mA
506WLSN6R00KT236T	6.0	700 KHz to 40+ GHz	< 0.4 dB	> 18 dB	2.85	236 mA
506WLSN10R7KT150T	10.7	400 KHz to 40+ GHz	< 0.4 dB	> 17 dB	7.10	150 mA
