500S Millimeter Wave Surface Mount Capacitors

Features & Benefits

Low Insertion Loss
Rugged Construction
Ultra High Self Resonance
Surface Mountable

500 Series (BMC) Broadband Microwave Capacitor is a unique, patented component which greatly exceeds both multilayer and single layer capacitor performance. It delivers extremely low insertion loss with ultra-high self resonance performance, in a rugged, laser-marked package compatible with automatic SMT manufacturing.

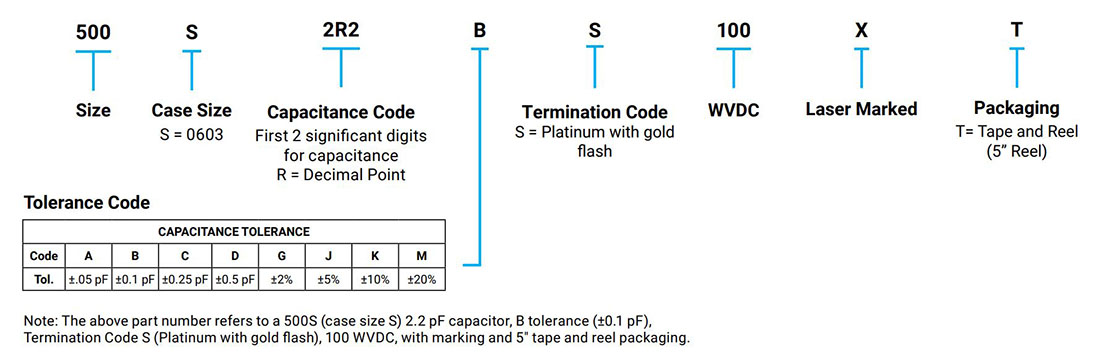

Electrical Specifications

QUALITY FACTOR (Q): Greater than 1,000 @ 1 MHz.
TEMPERATURE COEFFICIENT OF CAPACITANCE (T.C.):
0 ±30 PPM/°C (–55°C to +125°C) (0.1 pF to 2.2 pF)
0 ±60 PPM/°C (–55°C to +125°C) (2.4 pF to 10 pF)
INSULATION RESISTANCE (IR): 0.1 pF to 10 pF
10⁵ Megohms min. @ +25°C @ rated WVDC
10⁴ Megohms min. @ +125°C @ rated WVDC
WORKING VOLTAGE (WVDC):
100 WVDC (0.1 pF to 4.7 pF)
50 WVDC (5.1 pF to 10 pF)
DIELECTRIC WITHSTANDING VOLTAGE (DWV): 200% of rated WVDC for 5 secs
OPERATING TEMPERATURE RANGE: From –55°C to +125°C (No derating of working voltage).
TERMINATION: Chip style suitable for surface mounting.
Platinum with gold flash.
Die Shear Strength Test per MIL-STD-883, Method 2019
