| Antenna Type: | External (Indoor) |
| Technology: | Cellular / 2G / 3G / ISM / LoRa / Sigfox / Z-wave |
| Band: | 868 / 915, GSM850 / GSM900 / DCS / PCS |
| Frequency: | 824 – 960 MHz, 1710 – 2170 MHz |
| Peak Gain: | 824 – 960 MHz = 1.8 dBi (short edge corner) / 2.8 dBi (long edge corner) 1710 – 2170 MHz = 4.1 dBi (short edge corner) / 2.7 dBi (long edge corner) |
| Efficiency: | 824 – 960 MHz = 66% (short edge corner) / 74% (long edge corner) 1710 – 2170 MHz = 66% (short edge corner) / 57% (long edge corner) |
| Size (mm): | 47.80 x 8.20 diameter. |
| Weight (grams): | 6 |
| Mounting: | Connector |

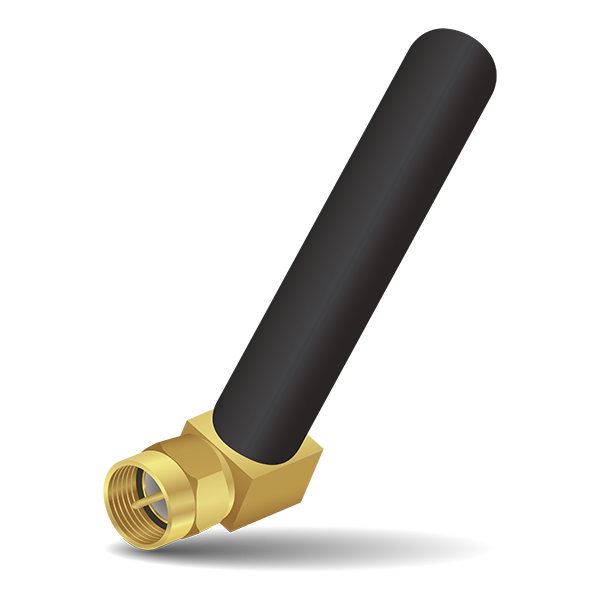

| Antenna P/N: | X9001558 |
KYOCERA AVX series of External Antennas deliver on the key needs of device designers for higher functionality and performance in IoT environment.
This antenna offers high gain in small form factor ideal to use for reference kits and demo board. The antenna can be mounted easily to the device via angle SMA connector.
For more information about KYOCERA AVX Antennas, visit our antenna portfolio or contact our technical support team.
