X1005800 – External Wi Fi 6E/7 Antenna

Antenna Type: External (Outdoor)
Technology: Wi-Fi, Wi-Fi 6E, Wi-Fi 7, WLAN, BLE, Bluetooth, ZigBee
Band: 802.11 a/b/g/n/ac/ax
Frequency: 2400 – 2485 MHz, 5150 – 5850 MHz, 5925 – 7125 MHz
Peak Gain: 2400-2500 MHz = 4.0dBi
5150-5825 MHz = 5.3dBi
5925-7125 MHz = 5.6dBi
Efficiency: 2400-2500 MHz = 85%
5150-5825 MHz = 84%
5925-7125 MHz = 73%
IP Rating: IP67
Size (mm): 163.7 x 32.7 x 22.5
Mounting: Connector

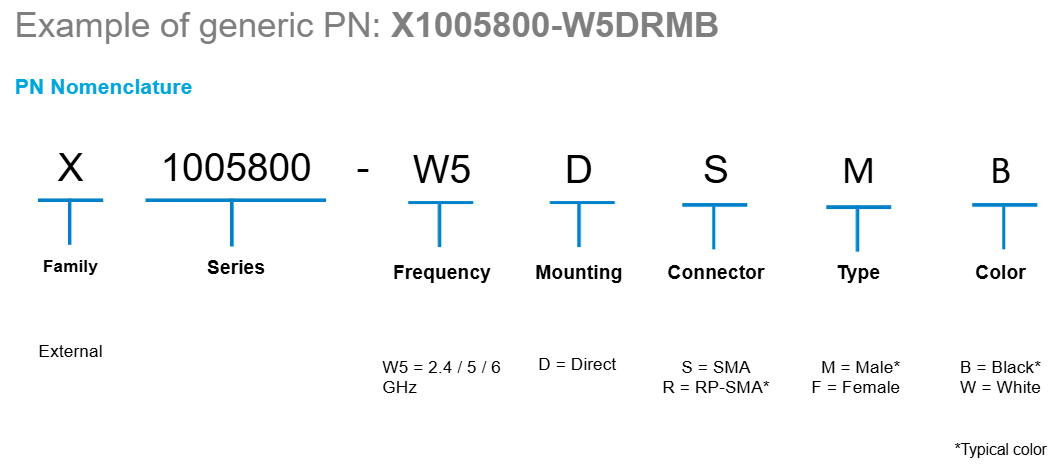

Antenna P/N: X1005800
SKU: X1005800 Category:

Description

KYOCERA AVX’s X1005800 is a high-performing external outdoor Wi-Fi 6E/7 antenna. It is IP67 waterproof.
