| Antenna Type: | Internal (Off Board) |
| Technology: | UWB |
| Band: | |
| Frequency: | 6.0 – 8.5 GHz |
| Peak Gain: | 5.3 dBi |
| Efficiency: | 85% |
| Size (mm): | 18.6 x 15.6 x 0.2 |
| Weight (grams): | 0.77 |
| Mounting: | Adhesive + Cable + Connector |
| Antenna P/N: | 1005190F0 | View P/N Nomenclature |
Part Number (Click P/N Below) | Connector | Cable Length |
|---|---|---|
| 1005190F0-AA70L0025 | MHF (u.fl compatible) | 25mm |
| 1005190F0-AA70L0050 | MHF (u.fl compatible) | 50mm |
| 1005190F0-AA70L0075 | MHF (u.fl compatible) | 75mm |
| 1005190F0-AA70L0100 | MHF (u.fl compatible) | 100mm |
| 1005190F0-AA70L0150 | MHF (u.fl compatible) | 150mm |
| 1005190F0-AA70L0200 | MHF (u.fl compatible) | 200mm |
| 1005190F0-AS70L0025 | SMA (Male) | 25mm |
| 1005190F0-AS70L0050 | SMA (Male) | 50mm |
| 1005190F0-AS70L0075 | SMA (Male) | 75mm |
| 1005190F0-AS70L0100 | SMA (Male) | 100mm |
| 1005190F0-AS70L0150 | SMA (Male) | 150mm |
| 1005190F0-AS70L0200 | SMA (Male) | 200mm |

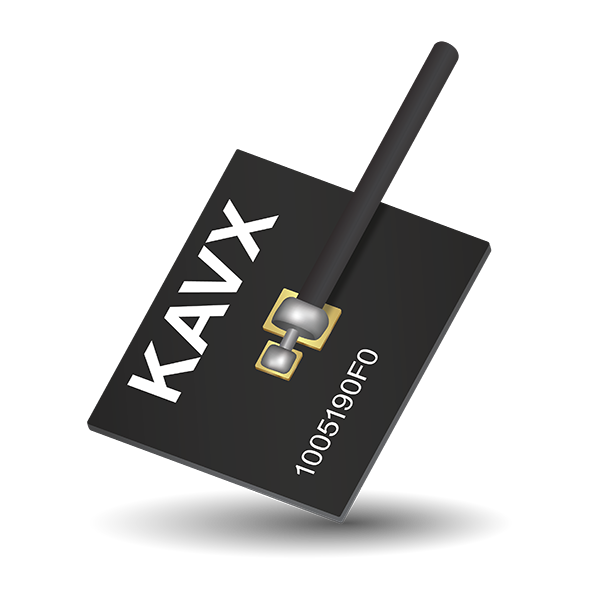

The 1005190F0 is a versatile off-board UWB FPC antenna optimized for applications spanning 6.5 – 8.5 GHz where off-board implementation is advantageous and necessary. 1005190F0 is ideal for systems requiring a ground plane independent antenna allowing maximum placement flexibility.
Custom cable and connector options are available. Please contact us for more information.
