| Antenna Type: | Internal (Off Board) |
| Technology: | Cellular / 2G / 3G / 4G / LTE / LTE-M / NB-IoT |
| Band: | LTE B1 / B2 / B3 / B4 / B5 / B6 / B7 / B8 / B9 / B10 / B12 / B13 /B14 / B17 / B18 / B19 / B20 / B23 / B24 / B25 / B26 / B27 / B28 / B29 / B30 / B32 / B33 / B34 / B35 / B36 / B37 / B38 / B39 / B40 / B41 / B85 |
| Frequency: | 698-960 MHz / 1710-2700 MHz |
| Peak Gain: | 698 – 894 MHz = 1.2 dBi 1710-2700 MHz = 5.0 dBi |
| Efficiency: | 698 – 894 MHz = 50% 1710-2700 MHz = 64% |
| Size (mm): | 85.2 x 42.1 x 0.2 |
| Weight (grams): | 1.8 |
| Mounting: | Adhesive + Cable + Connector |

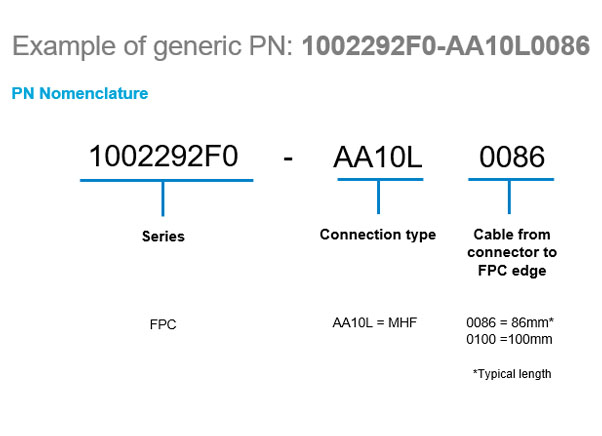

| Antenna P/N: | 1002292 | View P/N Nomenclature |
Part Number (Click P/N Below) | Connector | Cable Length |
|---|---|---|
| 1002292 | MHF (u.fl compatible) | 28.5mm |
| 1002292F0-AA10L0086 | MHF (u.fl compatible) | 86mm |
| 1002292F0-AA10L0100 | MHF (u.fl compatible) | 100mm |
|
Looking for a different cable length or connector? Send your inquiry: antenna.info@kyocera-avx.com |
The 1002292 Balanced LTE/Cellular embedded antenna addresses the challenges facing today’s product designers. Designed to increase the independence between the cellular antenna and the ground plane; 1002292 also supports the LTE frequency bands.
For more information about KYOCERA AVX Antennas, visit our antenna portfolio or contact our technical support team.
