| Antenna Type: | Internal (Off Board) |
| Technology: | 2G / 3G / 4G / 5G / Cellular / LTE / LTE-M / NB-IoT / Sub-6 GHz / SigFox / LoRa / LPWA |
| Band: | LTE B1 – LTE B43 5G n1 – 5G n84 |
| Frequency: | 600-960 MHz / 1415-2690 MHz / 3400-3800 MHz / 5150-5850 MHz |
| Peak Gain: | 2.36 dBi – 5.45 dBi (Depending on Frequency) |
| Average Efficiency: | 40-60% (Depending on Frequency) |
| Size (mm): | 102 x 14.5 x 0.2 |
| Weight (grams): | 1.1 |
| Mounting: | Adhesive + Cable + Connector |

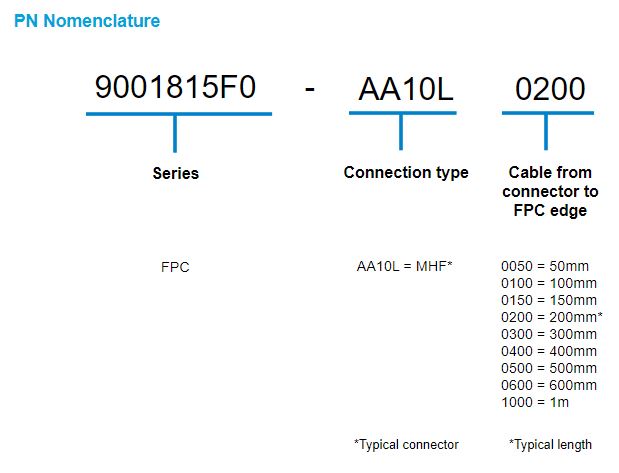

| Antenna P/N: | 9001815F0 | View P/N Nomenclature |
Part Number (Click P/N Below) | Connector | Cable Length (mm) |
|---|---|---|
| 9001815F0-AA10L0050 | MHF connector | 50 |
| 9001815F0-AA10L0100 | MHF connector | 100 |
| 9001815F0-AA10L0150 | MHF connector | 150 |
| 9001815F0-AA10L0200 | MHF connector | 200 |
| 9001815F0-AA10L0250 | MHF connector | 250 |
| 9001815F0-AA10L0300 | MHF connector | 300 |
| 9001815F0-AA10L0400 | MHF connector | 400 |
| 9001815F0-AA10L0500 | MHF connector | 500 |
| 9001815F0-AA10L0600 | MHF connector | 600 |
| 9001815F0-AA10L1000 | MHF connector | 1000 |
|
Looking for a different cable length or connector? Send your inquiry: antenna.info@kyocera-avx.com |
KYOCERA AVX 5G & NB-IoT FPC 9001815F0 address the challenges facing today’s product designers. Based on a flexible substrate for easier integration, high performance and isolation characteristics, this antenna offers better connectivity. In addition, 9001815F0 supports all the worldwide cellular bands for LTE. Antenna offered in multiple cable lengths for different applications environments.
