| Antenna Type: | Internal (Off Board) |
| Technology: | 2G / 3G / 4G / 5G / Cellular / LTE / LTE-M / NB-IoT / Sub-6 GHz / SigFox / LoRa / LPWA |
| Band: | LTE B1 – LTE B43 | 5G n1 – 5G n84 |
| Frequency: | 617-960 MHz / 1400-2200 MHz / 2300-2700 MHz / 3300-3800 MHz / 5000-6000 MHz |
| Peak Gain: | 3.4 dBi – 4.2 dBi |
| Average Efficiency: | 58.4% |
| Size (mm): | 100 x 30 x 0.2 |
| Weight (grams): | 1.66 |
| Mounting: | Adhesive + Cable + Connector |

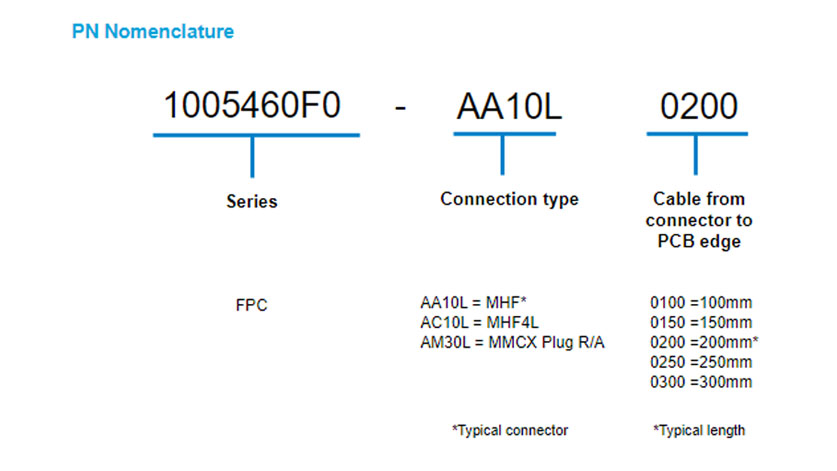

| Antenna P/N: | 1005460F0 | View P/N Nomenclature |
Part Number (Click P/N Below) | Connector | Cable Length (mm) |
|---|---|---|
| 1005460F0-AA10L0100 | U.FL connector | 100 |
| 1005460F0-AA10L0150 | U.FL connector | 150 |
| 1005460F0-AA10L0200 | U.FL connector | 200 |
| 1005460F0-AA10L0250 | U.FL connector | 250 |
| 1005460F0-AA10L0300 | U.FL connector | 300 |
| 1005460F0-AC10L0100 | MHF4L Connector | 100 |
| 1005460F0-AC10L0150 | MHF4L Connector | 150 |
| 1005460F0-AC10L0200 | MHF4L Connector | 200 |
| 1005460F0-AC10L0250 | MHF4L Connector | 250 |
| 1005460F0-AC10L0300 | MHF4L Connector | 300 |
|
Looking for a different cable length or connector? Send your inquiry: antenna.info@kyocera-avx.com |
KYOCERA AVX LTE cellular embedded antenna 1005460F0 addresses the challenges facing today’s product designers. Based on a flexible substrate for easier integration, high performance and isolation characteristics, this antenna offers better connectivity. The 1005460F0 is designed to perform efficiently for long cable lengths, when the antenna is far from the ground plane. In addition, 1005460F0 is offered in multiple standard cable lengths ranging from 100 mm to 300 mm.
